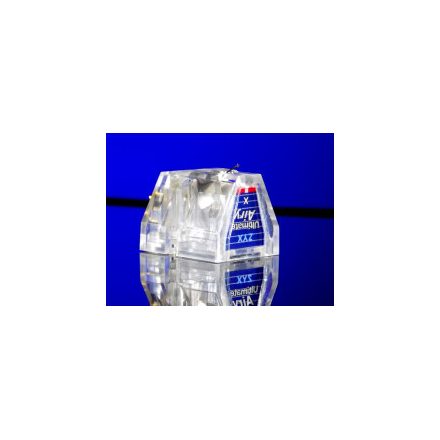

ZYX Ultimate Airy Gold

Type Moving Coil (Dynamic)
“REAL STEREO” Generator System
Cryogenic Treatment Temperature: -196 ℃ (-320оF)
Output Voltage 0.24mV (0.48mV) (3.54cm/sec, 1kHz)
Frequency Response
±1dB 10 Hz - 100 kHz
20 Hz - 20 kHz
Channel Separation ＞ 30dB 〔 1kHz 〕
Channel Balance ＜ 0.5dB 〔 1kHz 〕
Recommended Tracking Force 2.0gm 〔 20 ゜C-25 ゜C 〕
Tracking Force Range 1.7gm - 2.5gm
Trackability ＞ 60μm /2.0gm
EQ Compliance horizontal
vertical
15×10-6cm/dyne
12×10-6cm/dyne
Internal Impedance 4.0 Ω (8.0 Ω)
Load Impedance ＞ 100Ω
Coil Wire X type
S type
G type
6N Crystal Copper φ 0.035mm
5N Silver φ 0.035mm
K24 Gold φ 0.035mm
Cantilever Material C-1000 Carbon φ0.30mm
Stylus Micro-Ridge Solid Diamond□0.1mm
Contact Radius, Life Time 3μm×60μm, 2000Hour/2.0gm
Output Terminals φ1.25mm gold plated〔EIA〕
Terminal Board Glass Epoxy Plate
Dimensions 16.2mm(W)×19.7mm(L)×x17.6mm(H)
Net Weight 5.0gm, 7.7gm(TB), 9.0gm(SB)
